IntaRNA::InteractionRange Class Reference

#include <InteractionRange.h>

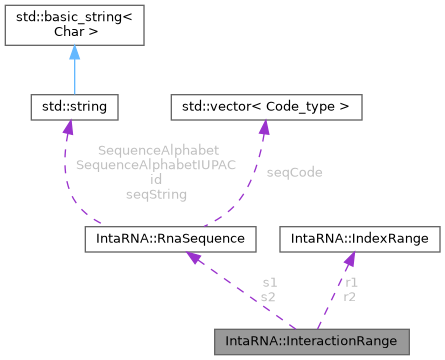

Collaboration diagram for IntaRNA::InteractionRange:

Public Member Functions
	InteractionRange (const RnaSequence &rna1, const RnaSequence &rna2, const IndexRange &r1=IndexRange(0, RnaSequence::lastPos), const IndexRange &r2=IndexRange(RnaSequence::lastPos, 0), const E_type energy=E_INF)
	InteractionRange (const Interaction &interaction)
virtual	~InteractionRange ()
bool	isSane () const
const bool	operator< (const InteractionRange &r) const
InteractionRange &	operator= (const Interaction &interaction)

Public Attributes
const RnaSequence *	s1
	the first interaction partner
const RnaSequence *	s2
	the second interaction partner
IndexRange	r1
	the index range of s1 interacting with r2
IndexRange	r2
	the index range of s2 interacting with r1
E_type	energy
	the energy value associated with this interaction range

Friends
std::ostream &	operator<< (std::ostream &out, const InteractionRange &r)

Detailed Description

Represents two ranges that form an interaction

Constructor & Destructor Documentation

InteractionRange() [1/2]

IntaRNA::InteractionRange::InteractionRange ( const RnaSequence &  rna1, const RnaSequence &  rna2, const IndexRange &  r1 = IndexRange(0,RnaSequence::lastPos), const IndexRange &  r2 = IndexRange(RnaSequence::lastPos,0), const E_type  energy = E_INF  )

inline

Construction of an interaction range given two index ranges

Parameters

rna1	the first RNA interacting
rna2	the second RNA interacting
r1	the range of rna1 interacting
r2	the range of rna2 interacting
energy	the energy value assigned to the range

InteractionRange() [2/2]

IntaRNA::InteractionRange::InteractionRange ( const Interaction &  interaction )

inline

Construction of an interaction range given two index ranges

~InteractionRange()

virtual IntaRNA::InteractionRange::~InteractionRange ( )

inlinevirtual

Destruction

Member Function Documentation

isSane()

bool IntaRNA::InteractionRange::isSane ( ) const

inline

Checks whether or not the range encoding is reasonable.

Returns

from <= to

operator<()

const bool IntaRNA::InteractionRange::operator< ( const InteractionRange &  r ) const

inline

Defines a less-than order on interaction ranges.

Parameters

r	the range to compare to

Returns

(r1 < r.r1) || (!(r1>r.r1) && r2<r.r2)

operator=()

InteractionRange & IntaRNA::InteractionRange::operator=

(

const Interaction &

interaction

)

Copies the range of the given interaction into this.

Parameters

interaction

the interaction to get the range from

Returns

the altered range object (*this)

Friends And Related Symbol Documentation

operator<<

std::ostream & operator<< ( std::ostream &  out, const InteractionRange &  r  )

friend

Prints the range's boundaries to stream

Parameters

out	the ostream to write to
r	the InteractionRange object to add

Returns

the altered stream out

Member Data Documentation

energy

E_type IntaRNA::InteractionRange::energy

the energy value associated with this interaction range

r1

IndexRange IntaRNA::InteractionRange::r1

the index range of s1 interacting with r2

r2

IndexRange IntaRNA::InteractionRange::r2

the index range of s2 interacting with r1

s1

const RnaSequence* IntaRNA::InteractionRange::s1

the first interaction partner

s2

const RnaSequence* IntaRNA::InteractionRange::s2

the second interaction partner

---

The documentation for this class was generated from the following file:

• src/IntaRNA/InteractionRange.h
