IntaRNA::OutputHandlerHub Class Reference

#include <OutputHandlerHub.h>

Inheritance diagram for IntaRNA::OutputHandlerHub:

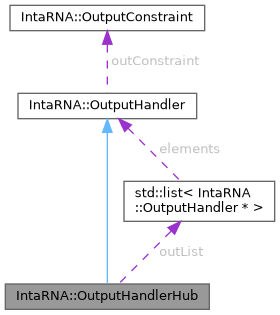

Collaboration diagram for IntaRNA::OutputHandlerHub:

Public Member Functions
	OutputHandlerHub (const OutputConstraint &outConstraint, const bool deleteOutListOnDestruction=true)
	OutputHandlerHub (const OutputHandlerHub &toCopy)
virtual	~OutputHandlerHub ()
virtual void	add (const Interaction &interaction)
virtual size_t	reported () const
virtual void	incrementZ (const Z_type subZ)
virtual Z_type	getZ () const
virtual void	addOutputHandler (OutputHandler *handler)
virtual void	setDeleteOnDestruction (const bool deleteOnDestruction)
virtual bool	isDeleteOnDestruction () const
OutputHandlerHub &	operator= (const OutputHandlerHub &toCopy)
Public Member Functions inherited from IntaRNA::OutputHandler
	OutputHandler (const OutputConstraint &outConstraint)
virtual	~OutputHandler ()
const OutputConstraint &	getOutputConstraint () const

Protected Attributes
std::list< OutputHandler * >	outList
	list of OutputHandler objects to forward to
bool	deleteOutListOnDestruction
Protected Attributes inherited from IntaRNA::OutputHandler
const OutputConstraint	outConstraint
	the output constraints to be applied
size_t	reportedInteractions
	number of reported interactions
Z_type	Z
	overall partition function for the sequences provided in Z_energy

Additional Inherited Members
Static Public Member Functions inherited from IntaRNA::OutputHandler
static std::string	reverse (const std::string &str)

Detailed Description

Hub implementation of an OutputHandler that forwards each reported interaction to each of the registered OutputHandler instances.

Constructor & Destructor Documentation

OutputHandlerHub() [1/2]

IntaRNA::OutputHandlerHub::OutputHandlerHub ( const OutputConstraint &  outConstraint, const bool  deleteOutListOnDestruction = true  )

inline

construction

Parameters

outConstraint	the output constraint applied to find the reported interaction
deleteOutListOnDestruction	whether or not the objects the hub is forwarding to are to be deleted on destruction

OutputHandlerHub() [2/2]

IntaRNA::OutputHandlerHub::OutputHandlerHub ( const OutputHandlerHub &  toCopy )

inline

copy construction (will not delete the copied OutputHandler list!)

Parameters

toCopy

the hub to copy

~OutputHandlerHub()

IntaRNA::OutputHandlerHub::~OutputHandlerHub ( )

inlinevirtual

destruction

Member Function Documentation

add()

void IntaRNA::OutputHandlerHub::add ( const Interaction &  interaction )

inlinevirtual

Forwards a given RNA-RNA interaction to all registered OutputHandler instances.

Parameters

interaction

the interaction to add

Implements IntaRNA::OutputHandler.

addOutputHandler()

void IntaRNA::OutputHandlerHub::addOutputHandler ( OutputHandler *  handler )

inlinevirtual

Adds a new OutputHandler to the forwarding list.

Parameters

handler

pointer to the handler to forward to

getZ()

Z_type IntaRNA::OutputHandlerHub::getZ ( ) const

inlinevirtual

Access to the partition function (initialized with 0) aggregated via incrementZ().

Returns

the maximal aggregated partition function Z among all handlers

Reimplemented from IntaRNA::OutputHandler.

incrementZ()

void IntaRNA::OutputHandlerHub::incrementZ ( const Z_type  subZ )

inlinevirtual

Increments the overall partition function with the given value.

Note, take care that multiple increments have to represent disjoint subsets of all interactions for the same pair of sequences, otherwise the aggregated overall partition function will be wrong!

Parameters

subZ	increment to be added to the overall partition function

Reimplemented from IntaRNA::OutputHandler.

isDeleteOnDestruction()

bool IntaRNA::OutputHandlerHub::isDeleteOnDestruction ( ) const

inlinevirtual

Returns whether or not the OutputHandler instances this hub forwards to are deleted when this hub is deleted.

Returns

true: forward objects are deleted; false: not

operator=()

OutputHandlerHub & IntaRNA::OutputHandlerHub::operator= ( const OutputHandlerHub &  toCopy )

inline

Copies the outList of toCopy but wont delete it later.

NOTE: this (copy) hub will NOT delete the outList to avoid duplicated deletions. This should be done by the original hub (toCopy)

Parameters

toCopy

the handler to make this a copy of

Returns

the altered range object (*this)

reported()

size_t IntaRNA::OutputHandlerHub::reported ( ) const

inlinevirtual

Returns the maximal number of reported interactions among all handlers within forwarding list

Returns

the maximal number of reported interactions among all handlers

Reimplemented from IntaRNA::OutputHandler.

setDeleteOnDestruction()

void IntaRNA::OutputHandlerHub::setDeleteOnDestruction ( const bool  deleteOnDestruction )

inlinevirtual

Defines whether or not the OutputHandler instances this hub forwards to are deleted when this hub is deleted.

Parameters

deleteOnDestruction

true: forward objects are deleted; false: not

Member Data Documentation

deleteOutListOnDestruction

bool IntaRNA::OutputHandlerHub::deleteOutListOnDestruction

protected

whether or not the elements in outList are to be deleted when this object is destroyed

outList

std::list< OutputHandler * > IntaRNA::OutputHandlerHub::outList

protected

list of OutputHandler objects to forward to

---

The documentation for this class was generated from the following file:

• src/IntaRNA/OutputHandlerHub.h
