#include <PredictorMfe2d.h>

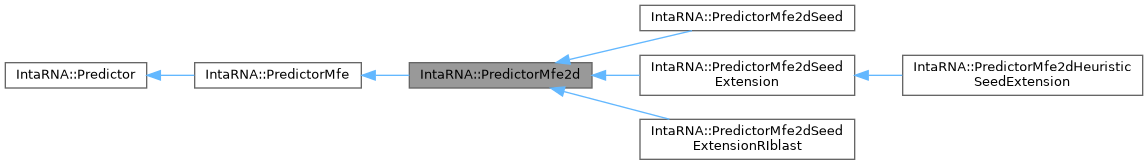

Inheritance diagram for IntaRNA::PredictorMfe2d:

[legend]

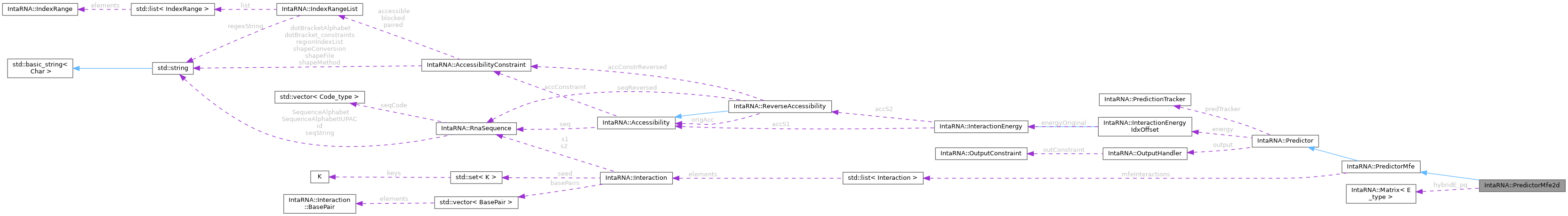

Collaboration diagram for IntaRNA::PredictorMfe2d:

[legend]

Public Member Functions
	PredictorMfe2d (const InteractionEnergy &energy, OutputHandler &output, PredictionTracker *predTracker)

virtual	~PredictorMfe2d ()

virtual void	predict (const IndexRange &r1=IndexRange(0, RnaSequence::lastPos), const IndexRange &r2=IndexRange(0, RnaSequence::lastPos))

Public Member Functions inherited from IntaRNA::PredictorMfe
	PredictorMfe (const InteractionEnergy &energy, OutputHandler &output, PredictionTracker *predTracker)

virtual	~PredictorMfe ()

Public Member Functions inherited from IntaRNA::Predictor
	Predictor (const InteractionEnergy &energy, OutputHandler &output, PredictionTracker *predTracker)

virtual	~Predictor ()

Z_type	getZall () const

Protected Types
typedef Matrix< E_type >	E2dMatrix
	matrix type to hold the mfe energies for interaction site starts

Protected Types inherited from IntaRNA::PredictorMfe
typedef BestInteraction< E_type >	BestInteractionE
	BestInteraction that stores an energy value.

typedef BestInteraction< Z_type >	BestInteractionZ
	BestInteraction that stores a partition function value.

typedef std::list< Interaction >	InteractionList
	list of interactions

typedef boost::unordered_map< Interaction::BasePair, BestInteractionE, Interaction::BasePair::Hash >	HashIdx2E
	hash to map index pairs to BestInteractionE entries

Protected Member Functions
virtual void	fillHybridE (const size_t j1, const size_t j2, const size_t i1init, const size_t i2init, const bool callUpdateOptima)

virtual void	traceBack (Interaction &interaction)

Protected Member Functions inherited from IntaRNA::PredictorMfe
virtual void	initOptima ()

bool	isValidOutputSite (const size_t i1, const size_t j1, const size_t i2, const size_t j2) const

virtual void	updateOptima (const size_t i1, const size_t j1, const size_t i2, const size_t j2, const E_type energy, const bool isHybridE, const bool incrementZall)

virtual void	getNextBest (Interaction &curBest)

virtual void	updateMfe4leftEnd (const size_t i1, const size_t j1, const size_t i2, const size_t j2, const Interaction &curInteraction)

virtual void	reportOptima ()

Protected Member Functions inherited from IntaRNA::Predictor
virtual void	updateZall (const size_t i1, const size_t j1, const size_t i2, const size_t j2, const E_type energy, const bool isHybridE)

void	incrementZall (const Z_type partZ)

Protected Attributes
E2dMatrix	hybridE_pq

InteractionEnergyIdxOffset	energy
	access to the interaction energy handler of the super class

OutputHandler &	output
	access to the output handler of the super class

Protected Attributes inherited from IntaRNA::PredictorMfe
InteractionList	mfeInteractions
	mfe interaction boundaries

HashIdx2E	mfe4leftEnd

std::pair< IndexRangeList, IndexRangeList >	reportedInteractions

InteractionEnergyIdxOffset	energy
	access to the interaction energy handler of the super class

OutputHandler &	output
	access to the output handler of the super class

PredictionTracker *	predTracker
	access to the prediction tracker of the super class

Protected Attributes inherited from IntaRNA::Predictor
InteractionEnergyIdxOffset	energy
	energy computation handler

OutputHandler &	output
	interaction output handler

PredictionTracker *	predTracker
	prediction tracker to be used

Z_type	Zall

Additional Inherited Members
Static Public Member Functions inherited from IntaRNA::Predictor
static size_t	getMaxInteractionWidth (const size_t w, const size_t maxLoopSize)

Detailed Description

Memory efficient predictor for RNAup-like computation, i.e. full DP-implementation without seed-heuristic, using 2D matrices

Author: Martin Mann

Member Typedef Documentation

◆ E2dMatrix

typedef Matrix<E_type> IntaRNA::PredictorMfe2d::E2dMatrix

protected

matrix type to hold the mfe energies for interaction site starts

Constructor & Destructor Documentation

◆ PredictorMfe2d()

IntaRNA::PredictorMfe2d::PredictorMfe2d	(	const InteractionEnergy &	energy,
		OutputHandler &	output,
		PredictionTracker *	predTracker
	)

Constructs a predictor and stores the energy and output handler

Parameters

energy	the interaction energy handler
output	the output handler to report mfe interactions to
predTracker	the prediction tracker to be used or NULL if no tracking is to be done; if non-NULL, the tracker gets deleted on this->destruction.

◆ ~PredictorMfe2d()

virtual IntaRNA::PredictorMfe2d::~PredictorMfe2d ( )

virtual

Member Function Documentation

◆ fillHybridE()

virtual void IntaRNA::PredictorMfe2d::fillHybridE	(	const size_t	j1,
		const size_t	j2,
		const size_t	i1init,
		const size_t	i2init,
		const bool	callUpdateOptima
	)

protectedvirtual

Computes all entries of the hybridE matrix for interactions ending in p=j1 and q=j2 and report all valid interactions to updateOptima()

Parameters

j1	end of the interaction within seq 1
j2	end of the interaction within seq 2
i1init	smallest value for i1
i2init	smallest value for i2
callUpdateOptima	whether or not updateOptima() is to be called

Reimplemented in IntaRNA::PredictorMfe2dSeed.

◆ predict()

virtual void IntaRNA::PredictorMfe2d::predict	(	const IndexRange &	r1 = `IndexRange(0, RnaSequence::lastPos)`,
		const IndexRange &	r2 = `IndexRange(0, RnaSequence::lastPos)`
	)

virtual

Computes the mfe for the given sequence ranges (i1-j1) in the first sequence and (i2-j2) in the second sequence and reports it to the output handler.

Parameters

r1	the index range of the first sequence interacting with r2
r2	the index range of the second sequence interacting with r1

Implements IntaRNA::Predictor.

Reimplemented in IntaRNA::PredictorMfe2dHeuristicSeedExtension, IntaRNA::PredictorMfe2dSeed, IntaRNA::PredictorMfe2dSeedExtension, and IntaRNA::PredictorMfe2dSeedExtensionRIblast.

◆ traceBack()

virtual void IntaRNA::PredictorMfe2d::traceBack ( Interaction & interaction )

protectedvirtual

Fills a given interaction (boundaries given) with the according hybridizing base pairs.

Parameters

interaction IN/OUT the interaction to fill

Implements IntaRNA::PredictorMfe.

Reimplemented in IntaRNA::PredictorMfe2dSeed, IntaRNA::PredictorMfe2dSeedExtension, and IntaRNA::PredictorMfe2dSeedExtensionRIblast.

Member Data Documentation

◆ energy

InteractionEnergyIdxOffset IntaRNA::Predictor::energy

protected

access to the interaction energy handler of the super class

◆ hybridE_pq

E2dMatrix IntaRNA::PredictorMfe2d::hybridE_pq

protected

energy of all interaction hybrids that end in position p (seq1) and q (seq2)

◆ output

OutputHandler& IntaRNA::Predictor::output

protected

access to the output handler of the super class

The documentation for this class was generated from the following file:

src/IntaRNA/PredictorMfe2d.h
