#include <PredictorMfe2dHelixBlockHeuristic.h>

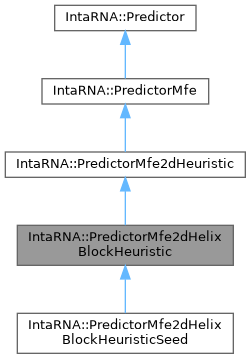

Inheritance diagram for IntaRNA::PredictorMfe2dHelixBlockHeuristic:

[legend]

Collaboration diagram for IntaRNA::PredictorMfe2dHelixBlockHeuristic:

[legend]

Public Member Functions
	PredictorMfe2dHelixBlockHeuristic (const InteractionEnergy &energy, OutputHandler &output, PredictionTracker *predTracker, const HelixConstraint &helixConstraint)

virtual	~PredictorMfe2dHelixBlockHeuristic ()

virtual void	predict (const IndexRange &r1=IndexRange(0, RnaSequence::lastPos), const IndexRange &r2=IndexRange(0, RnaSequence::lastPos))

Public Member Functions inherited from IntaRNA::PredictorMfe2dHeuristic
	PredictorMfe2dHeuristic (const InteractionEnergy &energy, OutputHandler &output, PredictionTracker *predTracker)

virtual	~PredictorMfe2dHeuristic ()

Public Member Functions inherited from IntaRNA::PredictorMfe
	PredictorMfe (const InteractionEnergy &energy, OutputHandler &output, PredictionTracker *predTracker)

virtual	~PredictorMfe ()

Public Member Functions inherited from IntaRNA::Predictor
	Predictor (const InteractionEnergy &energy, OutputHandler &output, PredictionTracker *predTracker)

virtual	~Predictor ()

Z_type	getZall () const

Protected Types
typedef PredictorMfe2dHeuristic::E2dMatrix	E2dMatrix
	matrix type to hold the mfe energies and boundaries for interaction site starts

Protected Types inherited from IntaRNA::PredictorMfe2dHeuristic
typedef Matrix< BestInteractionE >	E2dMatrix
	matrix type to hold the mfe energies and boundaries for interaction site starts

Protected Types inherited from IntaRNA::PredictorMfe
typedef BestInteraction< E_type >	BestInteractionE
	BestInteraction that stores an energy value.

typedef BestInteraction< Z_type >	BestInteractionZ
	BestInteraction that stores a partition function value.

typedef std::list< Interaction >	InteractionList
	list of interactions

typedef boost::unordered_map< Interaction::BasePair, BestInteractionE, Interaction::BasePair::Hash >	HashIdx2E
	hash to map index pairs to BestInteractionE entries

Protected Member Functions
virtual void	fillHybridE ()

virtual void	traceBack (Interaction &interaction)

virtual void	getNextBest (Interaction &curBest)

virtual void	updateMfe4leftEnd (const size_t i1, const size_t j1, const size_t i2, const size_t j2, const Interaction &curInteraction)

Protected Member Functions inherited from IntaRNA::PredictorMfe
virtual void	initOptima ()

bool	isValidOutputSite (const size_t i1, const size_t j1, const size_t i2, const size_t j2) const

virtual void	updateOptima (const size_t i1, const size_t j1, const size_t i2, const size_t j2, const E_type energy, const bool isHybridE, const bool incrementZall)

virtual void	reportOptima ()

Protected Member Functions inherited from IntaRNA::Predictor
virtual void	updateZall (const size_t i1, const size_t j1, const size_t i2, const size_t j2, const E_type energy, const bool isHybridE)

void	incrementZall (const Z_type partZ)

Protected Attributes
HelixHandlerIdxOffset	helixHandler
	helixHandler used only for creating HelixHandlerOffset

E2dMatrix	hybridE
	energy of all interaction hybrids starting in i1,i2

Protected Attributes inherited from IntaRNA::PredictorMfe2dHeuristic
E2dMatrix	hybridE
	energy of all interaction hybrids starting in i1,i2

InteractionEnergyIdxOffset	energy
	access to the interaction energy handler of the super class

OutputHandler &	output
	access to the output handler of the super class

std::pair< IndexRangeList, IndexRangeList >	reportedInteractions
	access to the list of reported interaction ranges of the super class

Protected Attributes inherited from IntaRNA::PredictorMfe
InteractionList	mfeInteractions
	mfe interaction boundaries

HashIdx2E	mfe4leftEnd

std::pair< IndexRangeList, IndexRangeList >	reportedInteractions

InteractionEnergyIdxOffset	energy
	access to the interaction energy handler of the super class

OutputHandler &	output
	access to the output handler of the super class

PredictionTracker *	predTracker
	access to the prediction tracker of the super class

Protected Attributes inherited from IntaRNA::Predictor
InteractionEnergyIdxOffset	energy
	energy computation handler

OutputHandler &	output
	interaction output handler

PredictionTracker *	predTracker
	prediction tracker to be used

Z_type	Zall

Additional Inherited Members
Static Public Member Functions inherited from IntaRNA::Predictor
static size_t	getMaxInteractionWidth (const size_t w, const size_t maxLoopSize)

Detailed Description

Memory efficient interaction predictor that uses a heuristic to find the mfe or a close-to-mfe interaction.

To this end, for each interaction start i1,i2 only the optimal right side interaction with boundaries j1,j2 is considered in the recursion instead of all possible interaction ranges.

Only maximal helices up to a given length are combined.

This yields a quadratic time and space complexity.

Author: Rick Gelhausen

Member Typedef Documentation

◆ E2dMatrix

typedef PredictorMfe2dHeuristic::E2dMatrix IntaRNA::PredictorMfe2dHelixBlockHeuristic::E2dMatrix

protected

matrix type to hold the mfe energies and boundaries for interaction site starts

Constructor & Destructor Documentation

◆ PredictorMfe2dHelixBlockHeuristic()

IntaRNA::PredictorMfe2dHelixBlockHeuristic::PredictorMfe2dHelixBlockHeuristic	(	const InteractionEnergy &	energy,
		OutputHandler &	output,
		PredictionTracker *	predTracker,
		const HelixConstraint &	helixConstraint
	)

Constructs a predictor and stores the energy and output handler

Parameters

energy	the interaction energy handler
output	the output handler to report mfe interactions to
predTracker	the prediction tracker to be used or NULL if no tracking is to be done; if non-NULL, the tracker gets deleted on this->destruction.

◆ ~PredictorMfe2dHelixBlockHeuristic()

virtual IntaRNA::PredictorMfe2dHelixBlockHeuristic::~PredictorMfe2dHelixBlockHeuristic ( )

virtual

Member Function Documentation

◆ fillHybridE()

virtual void IntaRNA::PredictorMfe2dHelixBlockHeuristic::fillHybridE ( )

protectedvirtual

Computes all entries of the hybridE matrix

Reimplemented from IntaRNA::PredictorMfe2dHeuristic.

◆ getNextBest()

virtual void IntaRNA::PredictorMfe2dHelixBlockHeuristic::getNextBest ( Interaction & curBest )

protectedvirtual

Identifies the next best interaction with an energy equal to or higher than the given interaction. The new interaction will not overlap any index range stored in reportedInteractions.

Parameters

curBest IN/OUT the current best interaction to be replaced with one of equal or higher energy not overlapping with any reported interaction so far; an interaction with energy E_INF is set, if there is no better interaction left

Reimplemented from IntaRNA::PredictorMfe2dHeuristic.

Reimplemented in IntaRNA::PredictorMfe2dHelixBlockHeuristicSeed.

◆ predict()

virtual void IntaRNA::PredictorMfe2dHelixBlockHeuristic::predict	(	const IndexRange &	r1 = `IndexRange(0, RnaSequence::lastPos)`,
		const IndexRange &	r2 = `IndexRange(0, RnaSequence::lastPos)`
	)

virtual

Computes the mfe for the given sequence ranges (i1-j1) in the first sequence and (i2-j2) in the second sequence and reports it to the output handler.

Parameters

r1	the index range of the first sequence interacting with r2
r2	the index range of the second sequence interacting with r1

Reimplemented from IntaRNA::PredictorMfe2dHeuristic.

Reimplemented in IntaRNA::PredictorMfe2dHelixBlockHeuristicSeed.

◆ traceBack()

virtual void IntaRNA::PredictorMfe2dHelixBlockHeuristic::traceBack ( Interaction & interaction )

protectedvirtual

Fills a given interaction (boundaries given) with the according hybridizing base pairs.

Parameters

interaction IN/OUT the interaction to fill

Reimplemented from IntaRNA::PredictorMfe2dHeuristic.

Reimplemented in IntaRNA::PredictorMfe2dHelixBlockHeuristicSeed.

◆ updateMfe4leftEnd()

virtual void IntaRNA::PredictorMfe2dHelixBlockHeuristic::updateMfe4leftEnd	(	const size_t	i1,
		const size_t	j1,
		const size_t	i2,
		const size_t	j2,
		const Interaction &	curInteraction
	)

protectedvirtual

Overwrites function of super class to surpress the update.

Parameters

i1	interaction start in seq1
j1	interaction end in seq1
i2	interaction start in seq2
i2	interaction end in seq2
curInteraction	the interaction information to be used for update

Reimplemented from IntaRNA::PredictorMfe2dHeuristic.

Member Data Documentation

◆ helixHandler

HelixHandlerIdxOffset IntaRNA::PredictorMfe2dHelixBlockHeuristic::helixHandler

protected

helixHandler used only for creating HelixHandlerOffset

◆ hybridE

E2dMatrix IntaRNA::PredictorMfe2dHeuristic::hybridE

protected

energy of all interaction hybrids starting in i1,i2

The documentation for this class was generated from the following file:

src/IntaRNA/PredictorMfe2dHelixBlockHeuristic.h
